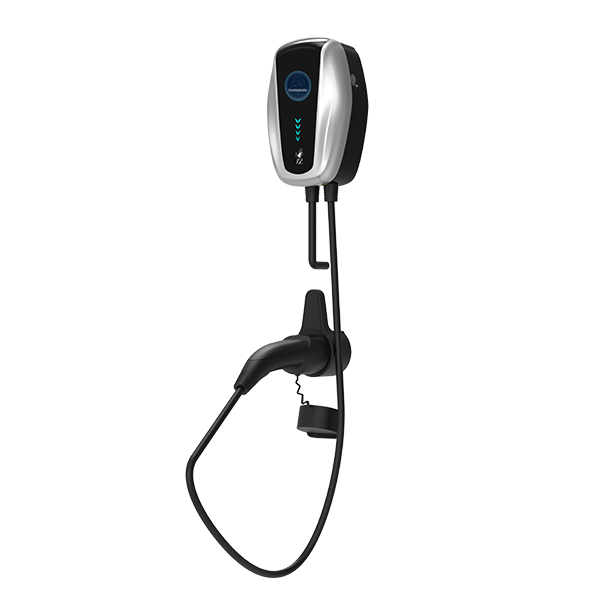

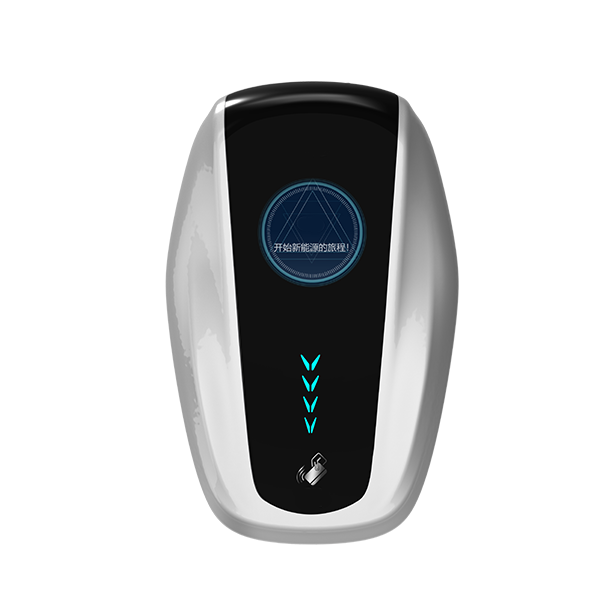

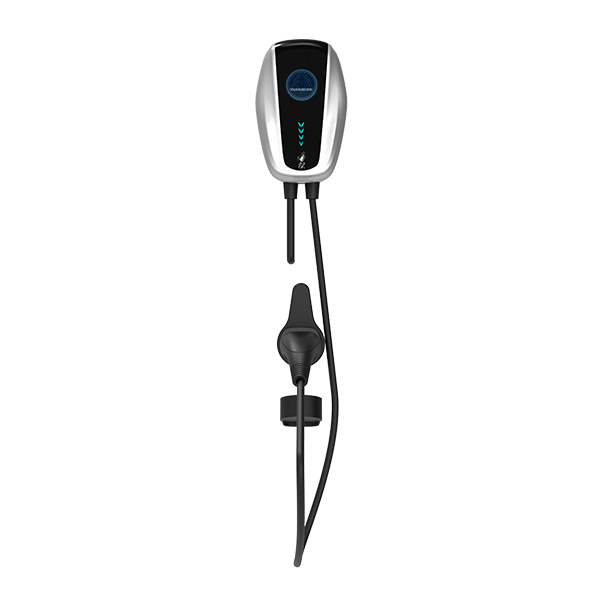

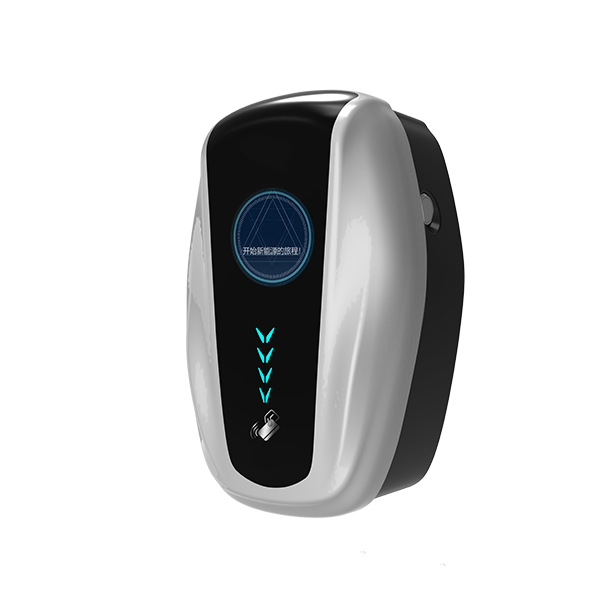

EV Wallbox Comercial Charger AC7KW with Socket and Cable Connector
EV Wallbox Comercial Charger AC7KW with Socket and Cable Connector
7KW EV Home Charger is a single-phase AC charger with maximum 32A output current, specially designed for private use.
With streamlined design and compact size, it saves space and is easy to operate, which is an ideal solution for your home and company.

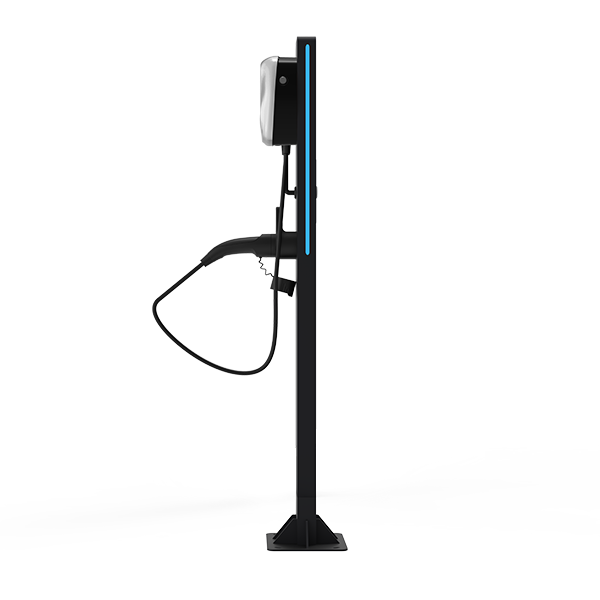

The charger is suitable for both indoor and outdoor applications, with protect on grade up to IP65. It supports wall-mount installation on as well floor-stand installation.
With a built-in WIFI module support OCPP communication protocol, the charger is capable to communication with the backend to achieve dynamic power control for your home company.
7KW EV Home Charger is a single-phase AC charger with maximum 32A output current, specially designed for private use.
With streamlined design and compact size, it saves space and is easy to operate, which is an ideal solution for your home and company.
The charger is suitable for both indoor and outdoor applications, with protect on grade up to IP65. It supports wall-mount installation on as well floor-stand installation.
With a built-in WIFI module support OCPP communication protocol, the charger is capable to communication with the backend to achieve dynamic power control for your home company.
Product Specification
Input Power | ||
Input Voltage（AC） | 1 phase+ neutral+ PE | |
Voltage | 230 V ± 10% | |
Frequency | 50 Hz | |
Output Power | ||
Output Voltage | 230 V ± 10% | |
Max Current | 32A | |
Normal Power | 7KW | |
Structure Design | ||
Housing Material | Plastic PC940 / Metal (Option) | |
Front Panel | Tempered glass | |
Altitude | ＜2000 Mtr. | |
Installed Methord | Wall mount / Floor-stand | |
Wall-mount Bracket | Not Necessary | |
Charging Outlet | One Charging Socket(Type 2) | |
Cable Length | No Cable | |
LED Indicator | Green/Yellow/Red color for different status | |
LCD Screen | Display of charging data | |
Touch Buttons | 4 buttons for screen operation | |
RFID Function | Yes | |
RFID Card | Mifare Card | |
Energy Meter | MID Certified | |
RCD | Type A+6mA DC | |
communication | Charger v.s.Backend | WIFI |
Communication Protocol | OCPP1.6(Json) | |
Environmental Index | Operating Temperature | -30℃ to 50℃ |
Working Humidity | 5%～95% without condensation | |
Working Altitude | <2000M | |
Protection Grade | IP54 | |
Application Site | Indoor/Outdoor | |
Cooling Method | Natural cooling | |
Security Protection | Multiple Protection | Over/Under voltage protection, Overload protection, Short circuit protection, Current leakage protection, Grounding protection, Surge protection, Over/Under temperature protection |
MTBF | 100,000hours | |
Safety Standard | IEC 61851-1: 2017, IEC 62196-2: 2016 | |
Warranty | 2 years | |
Package Information | Product Dimension | 325*215*77MM |
Net Weight | 3.0KG | |
Gross Weight | 4.0KG | |
External Packing | Carton | |
