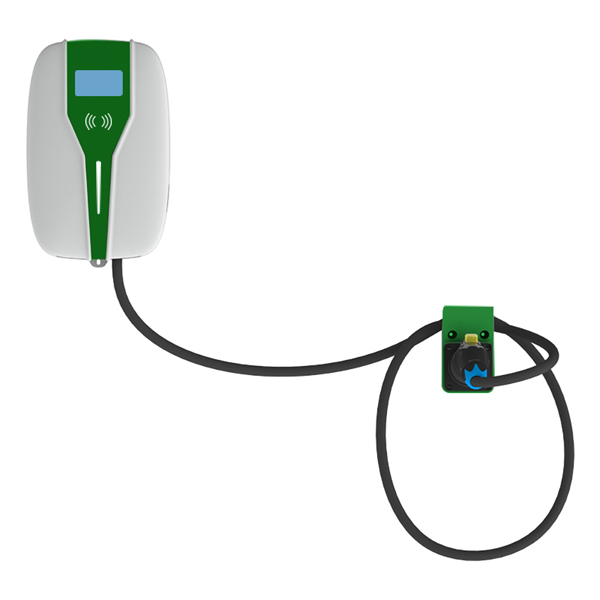

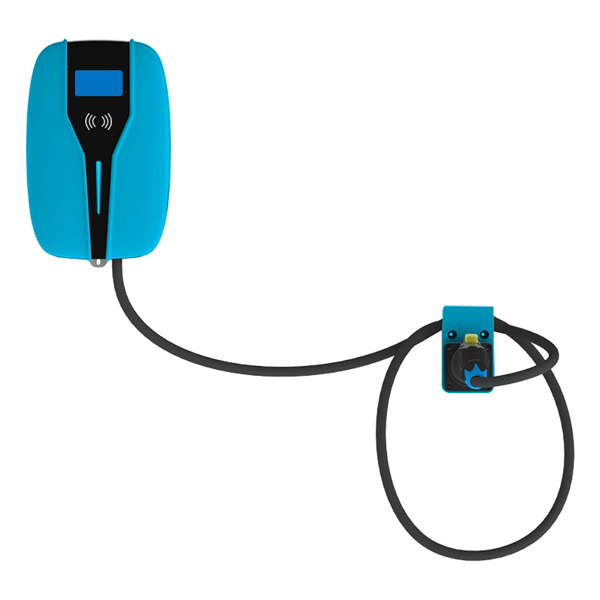

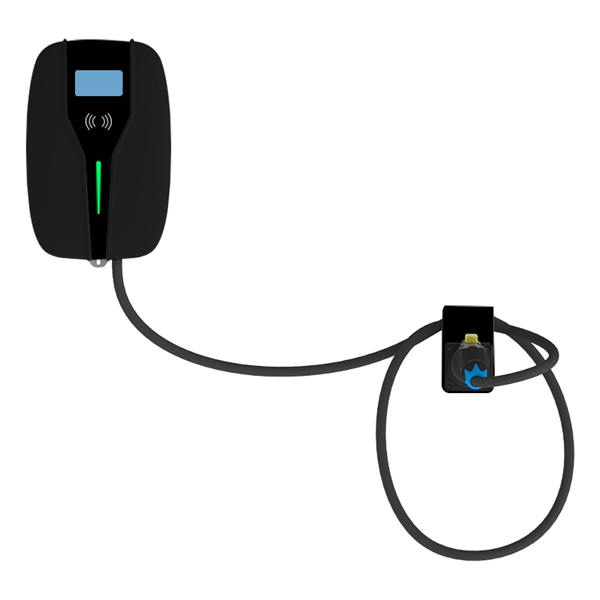

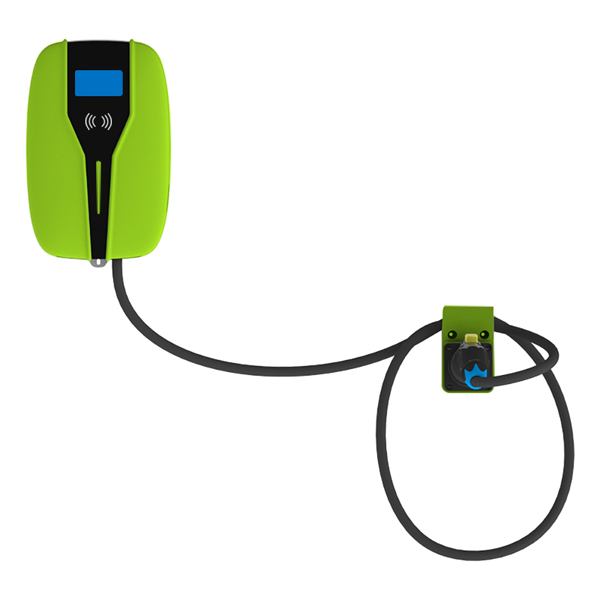

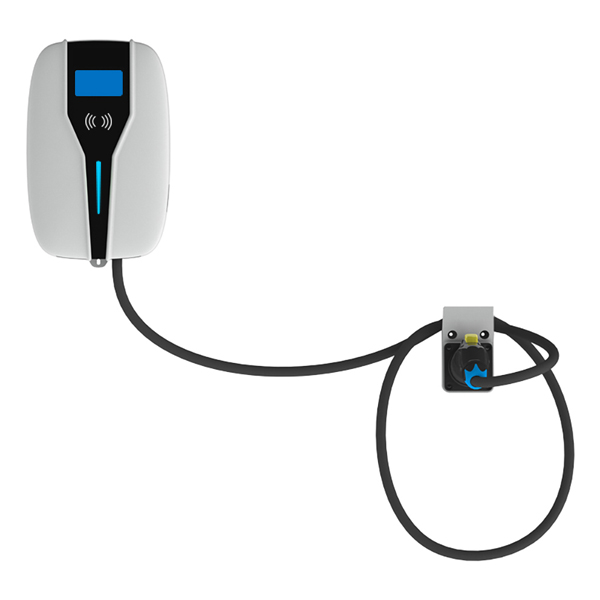

EV WallBox Pro-Smart Charger AC7KW with APP Control

PRODUCTS > 7KW > EV WallBox Pro-Smart Charger AC7KW with APP Control

EV WallBox Pro-Smart Charger AC7KW with APP Control

Product Features
• Simple charge
Plug and easy to play very convenient
• Real-time Display
Voltage current, time, status, fault and power. Take a look will know all!
• Highly Integrated
Highly integrated and compact design make
Maintenance and shipment easier
• More safety
The charger include over-current, over-voltage, surge, low voltage, leakage protection and DC protection.

Product Features

·         Simple charge

Plug and easy to play very convenient

·         Real-time Display

Voltage current, time, status, fault and power. Take a look will know all!

·         Highly Integrated

Highly integrated and compact design make

Maintenance and shipment easier

·         More safety

The charger include over-current, over-voltage, surge, low voltage, leakage protection and DC protection.



Advantages

·         Super screen

2.7”super screen, can check the screen information easily.

·         Switch design

 Plug in, then the switch can start or stop charging

·         Metal enclosure

Super heat absorption performance, alleviate overheating during charging. Increase service life.

·         Integrated appearance & structural design

EV charging station with socket or plug is optional according to your request.



Parameter



Specification

AE220007BY01

AE40011BY01

AE400022BY01

Voltage

230VAC±10%

380VAC±10%

380VAC±10%

Output Current

32A

16A

32A

Frequency

50/60Hz

50/60Hz

50/60Hz

Output Power

7Kw

11Kw

22Kw

Emergency Stop Button

Yes

Display

LCD Screen

RFID Function

3pcs cards

Residual current protection

Type A 30mA+DC6mA

Charging outlet

One charging socket(Type2)/4.5M charging cable

Housing Material

PCV 0 for outdoor

Front Ponel

PC

Installation Method

Wall-mount/Floor-stand

Safety standard

En 61851-1

Warranty

2 years

Protection Level

IP67

Temperature/Humidity

-30℃-50℃/5%-95% without condensation

Working Altitude

2000M

Application Site

Indoor/outdoor

Product Size

398X324X20mm

Product Weight

5.3/7.0KG

5.2/8.2KG

5.5/8.5KG

Optional Parts

Residual current protection

Type B RCD

Energy Meter

MID certificated
