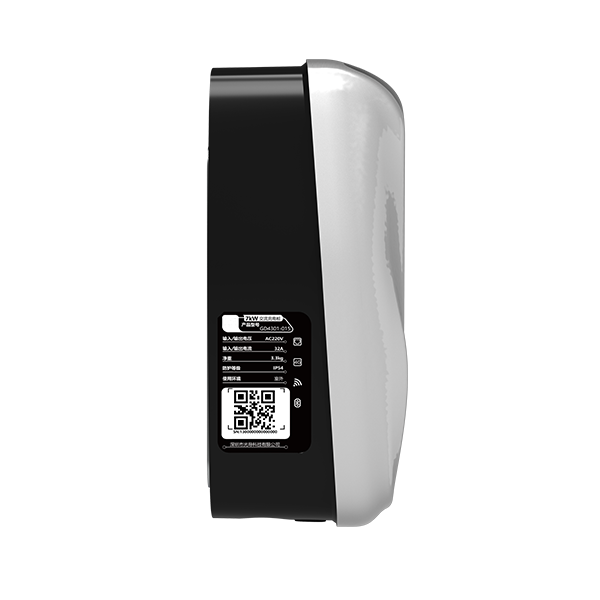

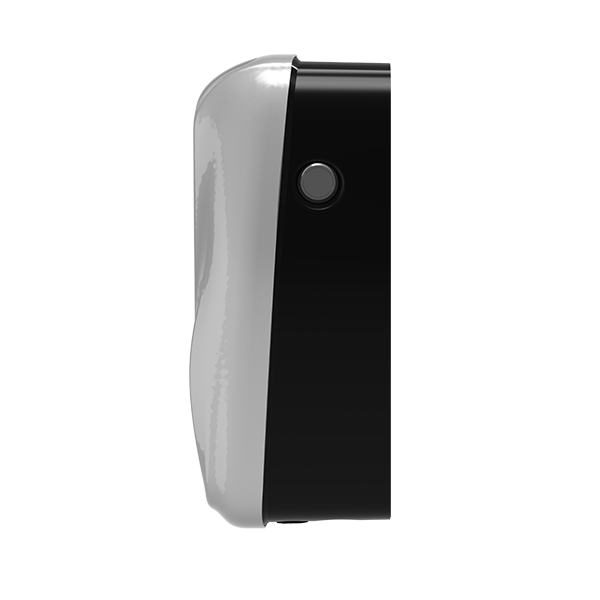

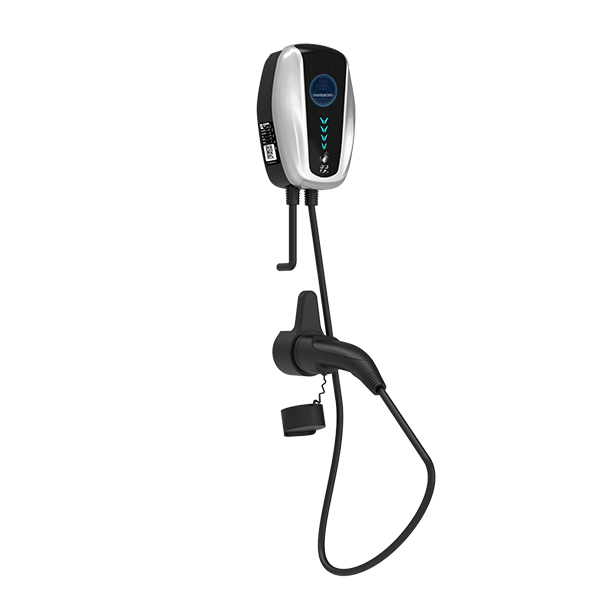

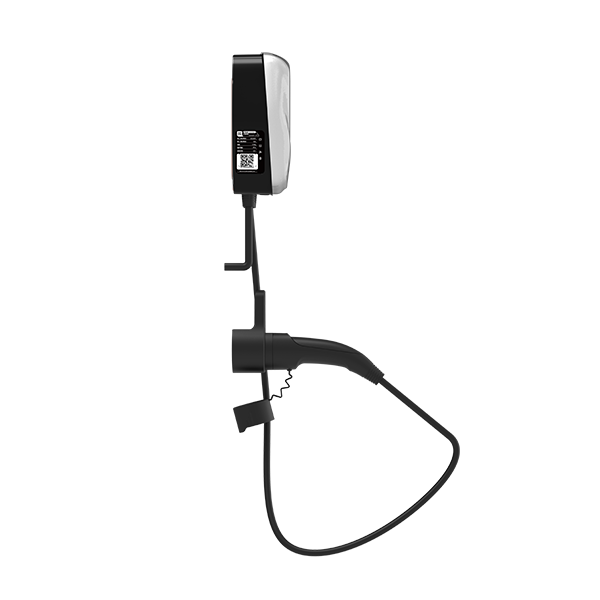

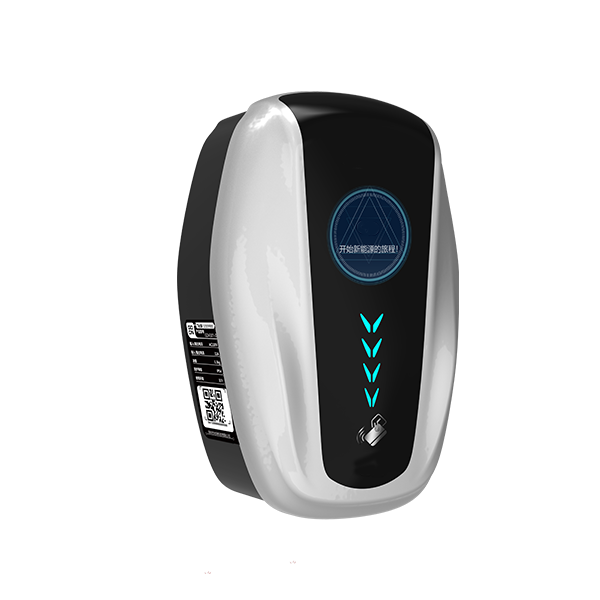

EV Wallbox Home Pro Charger AC7KW for EV Charging
EV Wallbox Home Pro Charger AC7KW for EV Charging
Flexible multi-protocol designed: Type2,Type1, GB/T.
Home smart APP control.
Setup for external energy meter integration for dynamic load management.
Charging Protocol：OCPP1.6.
Wired/wireless connectivity for integration with CMS.
User friendly LCD display for customer interface.
Can provide charging equipment that meets the different standards and customize as your requirements.
Product Features
l Flexible multi-protocol designed: Type2,Type1, GB/T.
l Home smart APP control.
l Setup for external energy meter integration for dynamic load management.
l Charging Protocol：OCPP1.6.
l Wired/wireless connectivity for integration with CMS.
l User friendly LCD display for customer interface.
l Can provide charging equipment that meets the different standards and customize as your requirements.
Advantage
The Sky AC wallbox is the innovative and high-value home charger on the market. It delivers the exceptional quality expected from the world leader in charging in a cost-effective solution.
With connectivity and smart functionality, the Newyea AC wallbox is built to adapt to deliver the most optimized charge today and into the future. Convenient home charging that integrates seamlessly into everyday life
Safety is a core principal of both Newyea’s business and the Newyea AC wallbox. The wall charger, as with Newyea’s entire EV charging product portfolio, has been evaluated and tested to the highest safety standards by independent, third-party safety certification organizations.
Parameter
Input Power | |||||||
Input Voltage（AC） | 1P+N+PE | 3P+N+PE | |||||
Input Frequency | 50Hz or 60Hz | ||||||
Wires, TNS / TNC Compatible | 3 Wires, L, N, PE | 5 Wires，L1，L2，L3，N，PE | |||||
Output | |||||||
Voltage | 230VAC±10% | 400VAC±10% | |||||
Max Current | 16A | 32A | 16A | 32A | 63A | ||
Nominal Power | 3.5KW | 7KW | 11KW | 22KW | 43KW | ||
RCD | Type A or Type B | ||||||
Environment | |||||||
Ambient Temperature | -35℃-60℃（-20℃ to --35℃，heating required） | ||||||
Storage Temperature | -40℃ to +70℃ | ||||||
Altitude | ＜2000Mtr. | ||||||
Humidity | ＜95%，non-condensing | ||||||
User Interface & Control | |||||||
Display | 4.3“，”7” Inch 2 options(with LED) | ||||||
Buttons and Switch | English | ||||||
Push Button | Display Wake up, Emergency Stop | ||||||
User Authentication | EMV Payment Schemes / RFID Based | ||||||
Visual Indication | Mains Available, Charging Status, System Error | ||||||
Protection | |||||||
Protection | Over Voltage, Under Voltage, Over Current, Short Circuit, Surge Protection, Over Temperature, Ground Fault, Residual Current | ||||||
Charging Protocol | OCPP 1.6 | ||||||
Communication | |||||||
Charger & Vehicle | PWM | ||||||
Charger & CMS | Protocol: OCPP 1.6 (Open Charge Point Protocol) Interface: Ethernet,3G/4G | ||||||
Mechanical | |||||||
Ingress Protection(EN 60529) | IP67 | ||||||
Impact Protection | IK 10 | ||||||
Enclosure Protection | Vandal Proof Metal Enclosure | ||||||
Cooling | Air Cooled | ||||||
Wire Length | 3.5-5 m | ||||||
Dimension(W*H*D) | 500*209*750mm | ||||||
