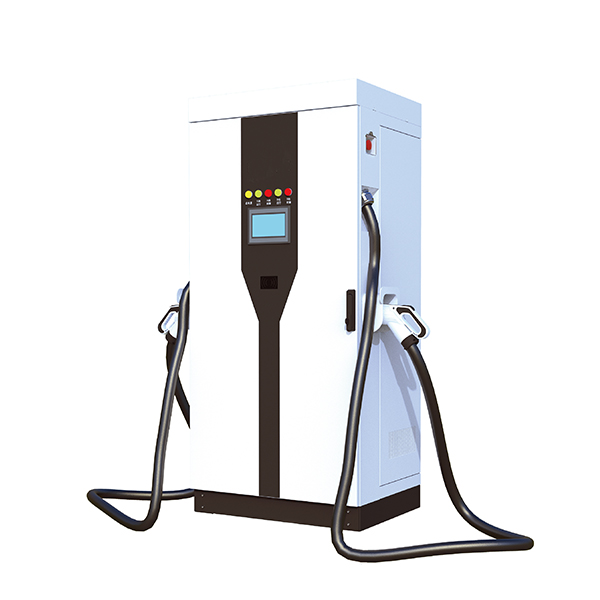

EV Fast Charger DC60kw with CCS CHaDEMO Cables for EV Charging Station
EV Fast Charger DC60kw with CCS CHaDEMO Cables for EV Charging Station
Based on the embedded intelligent charging pile independently researched and developed by LINUX, it is the first to realize seamless access to the Internet of things and smart cities.
Product Feature
Sky Technology has a new generation of intelligent charging piles for the new energy ecology.
Based on the embedded intelligent charging pile independently researched and developed by LINUX, it is the first to realize seamless access to the Internet of things and smart cities.
Advantage

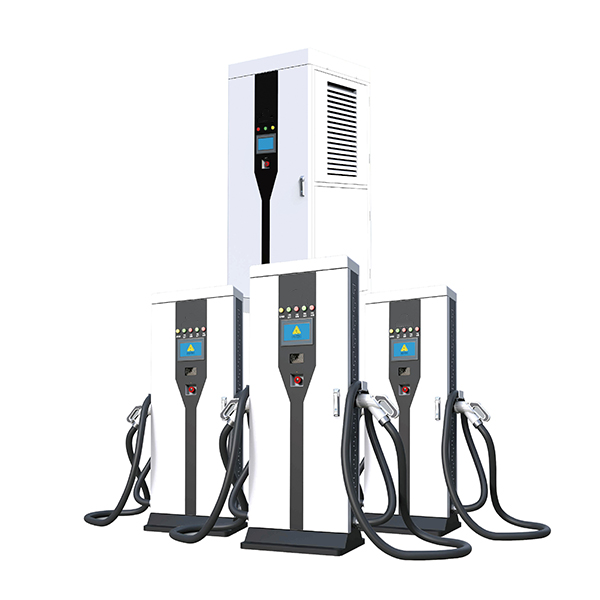

Sky's DC fast chargers are designed for quick, convenient charging of all electric vehicle models, including those equipped with high voltage battery systems. The Newyea’s compact size makes it perfect for public and fleet use, while its modularity allows an increase of charging power up to 180 kW and serve up to three electric vehicles at the same time.
The Newyea DC fast chargers includes 20 to 180 kW, including the most deployed 50 kW charging station across Asia and Europe.
A small footprint with an all-in-one enclosure makes Newyea DC fast chargers perfect for parking and fleet environments with limited available space
Maximized revenue generation
Supports all EV charging standards and battery voltages on the market, can charge up to three vehicles at once (2 charging fast plus 1 slow/AC charging for different models)
Large number of customizations: credit card payment terminal, cable management system, customized screen, branded cabinet and so on.
Reserved the wireless charging module port, supports future business needs with wirelss charging upgrade easily.
Product Specification
Input Power | ||
Input Voltage（AC） | 3 phase+ neutral+ PE | |
Voltage | 30，260-530VAC | |
Frequency | 50 Hz | |
Output Power | ||
Output Voltage | 150-500VDC | |
Max Current | 50A | |
Normal Power | 60KW | |
Structure Design | ||
Housing Material | Galvanized Steel (Option) | |
Front Panel | Tempered glass | |
Altitude | ＜2000 Mtr. | |
Installed Methord | Wall mount / Floor-stand | |
Wall-mount Bracket | Not Necessary | |
Connection Standard | CCS Combo2 (IEC 61851-23) | |
Connector/Socket type | IEC62196-3 CCS Combo2 Mode 4 | |
Vehicle Saftey Communication | CCS Combo 2- IEC 61851-23 over PLC | |
Number of output interface configuration moudles | 21KW*3 | |
Connector maximum output current | 150A | |
RFID system | ISO/IEC14443A/B,ISO/IEC15693,Felica 1,NFC reader mode, LEGIC Prime & Advant | |
Payments | Smart Card, Server based Online Payments or equivalent | |
Network connection | GSM/CDMA/3G modem，10/100 Base-T Ethernet | |
Interaction Display | Full-color ( 7 in 800*480TFT ) LCD display for driver interaction | |
communication | Charger v.s. Backend | WIFI |
Communication Protocol | OCPP1.6(Json) | |
Environmental Index | Operating Temperature | -30℃ to +50℃ |
Working Humidity | 5%～95% without condensation | |
Working Altitude | <2000M | |
Protection Grade | IP55 | |
Application Site | Indoor/Outdoor | |
Cooling Method | Natural cooling | |
Security Protection | Multiple Protection | Over/Under voltage protection, Overload protection, Short circuit protection, Current leakage protection, Grounding protection, Surge protection, Over/Under temperature protection |
MTBF | 100,000hours | |
Safety Standard | IEC 61851-1: 2017, IEC 62196-2: 2016 | |
