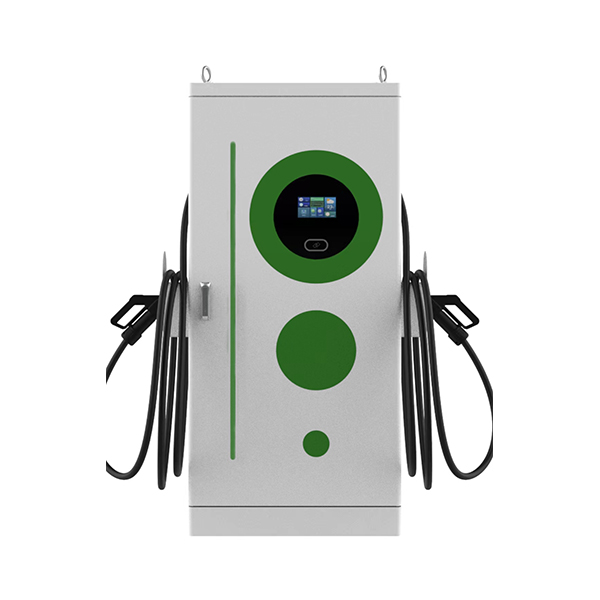

Ultrafast EV Charging with Integrated Energy Storage DC160KW EV Fast Charger
Ultrafast EV Charging with Integrated Energy Storage DC160KW EV Fast Charger
• Compatible for CCS, ChadeMO and GB/T, IEC62196-3(Combo1/Combo2)gun.
• 94% power efficiency.
• Wired/Wireless connectivity for integration with CMS.
• User friendly LCD display for customer interface.
• IP55 outdoor charging station.
Product Feature
Compatible for CCS, ChadeMO and GB/T, IEC62196-3(Combo1/Combo2)gun.
94% power efficiency.
Wired/Wireless connectivity for integration with CMS.
User friendly LCD display for customer interface.
IP55 outdoor charging station.
Advantage

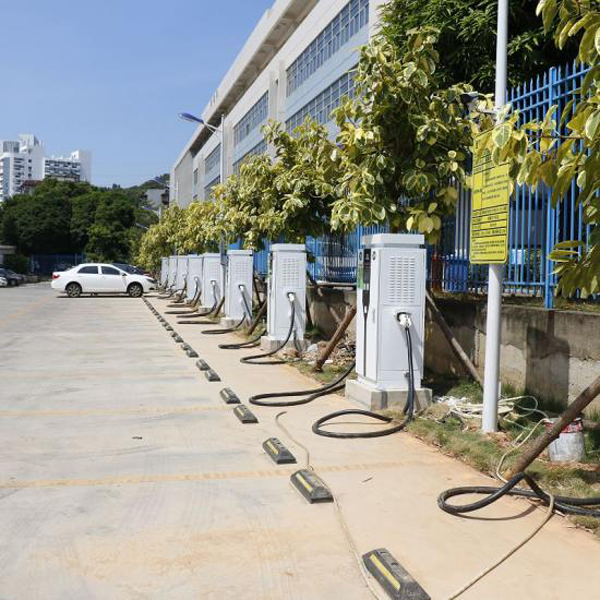

Sky DC160KW meet the requirements of different scenarios,
City Charging Point: The Sky DC fast chargers can provide a quick "refill" adding 100 km(62 mi) of range in as little from 15-25 minutes.
Retail / Shopping Center: Sky DC fast charger can provide a full charge to two vehicles simultaneously while shopping or dining; plus a third vehicle via the AC outlet (CE models).
Fast Charging Station: The higher power versions of the Sky chargers can add 100 km(62 mi) of range in under 8 minutes and fast-charge two and three vehicles at the same time
Product Specification
Input Power | |||
Input Voltage（AC） | 3 phase+ neutral+ PE | ||
Voltage | 30，260-530VAC | ||
Frequency | 50 Hz | ||
Output Power | |||
Output Voltage | 150-750VDC | ||
Max Current | 220A | ||
Normal Power | 160KW | ||
Structure Design | |||
Housing Material | Galvanized Steel (Option) | ||
Front Panel | Tempered glass | ||
Altitude | ＜2000 Mtr. | ||
Installed Methord | Wall mount / Floor-stand | ||
Wall-mount Bracket | Not Necessary | ||
Connection Standard | CCS Combo2 (IEC 61851-23) | ||
Connector/Socket type | IEC62196-3 CCS Combo2 Mode 4 | ||
Vehicle Saftey Communication | CCS Combo 2- IEC 61851-23 over PLC | ||
Number of output interface configuration moudles | 21KW*8 | ||
Connector maximum output current | 220A | ||
RFID system | ISO/IEC14443A/B,ISO/IEC15693,Felica 1,NFC reader mode, LEGIC Prime & Advant | ||
Payments | Smart Card, Server based Online Payments or equivalent | ||
Network connection | GSM/CDMA/3G modem，10/100 Base-T Ethernet | ||
Interaction Display | Full-color ( 7 in 800*480TFT ) LCD display for driver interaction | ||
communication | Charger v.s. Backend | WIFI | |
Communication Protocol | OCPP1.6(Json) | ||
Environmental Index | Operating Temperature | -30℃ to +50℃ | |
Working Humidity | 5%～95% without condensation | ||
Working Altitude | <2000M | ||
Protection Grade | IP55 | ||
Application Site | Indoor/Outdoor | ||
Cooling Method | Natural cooling | ||
Security Protection | Multiple Protection | Over/Under voltage protection, Overload protection, Short circuit protection, Current leakage protection, Grounding protection, Surge protection, Over/Under temperature protection | |
MTBF | 100,000hours | ||
Safety Standard | IEC 61851-1: 2017, IEC 62196-2: 2016 | ||
