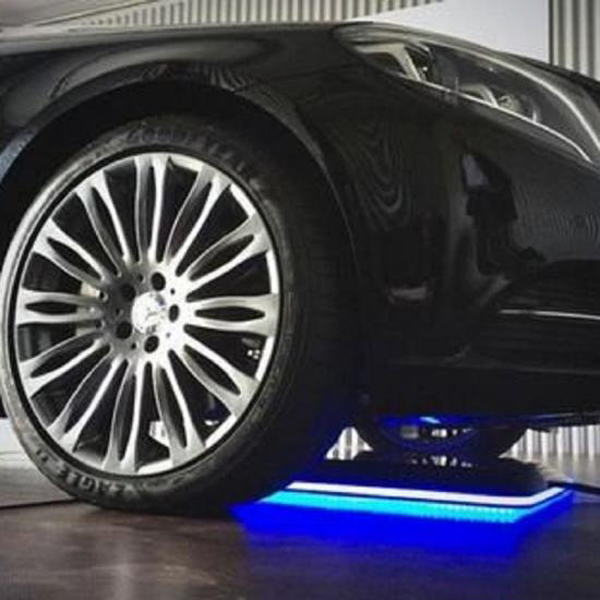

SkyTechnology 7 KW modular non-contact charging system is a solution designed for wireless charging of electric vehicles. The system is divided into two parts: transmitting and receiving. The transmitting part is composed of the transmitting control box and the transmitting coil, and the receiving part is composed of the receiving control box and the receiving coil. Compared with the contact charging system, the wireless energy transfer system has the advantages of simple operation, safety and no direct electrical connection, which can meet the power supply requirements of electric vehicles, field vehicles, large robots and other machines.

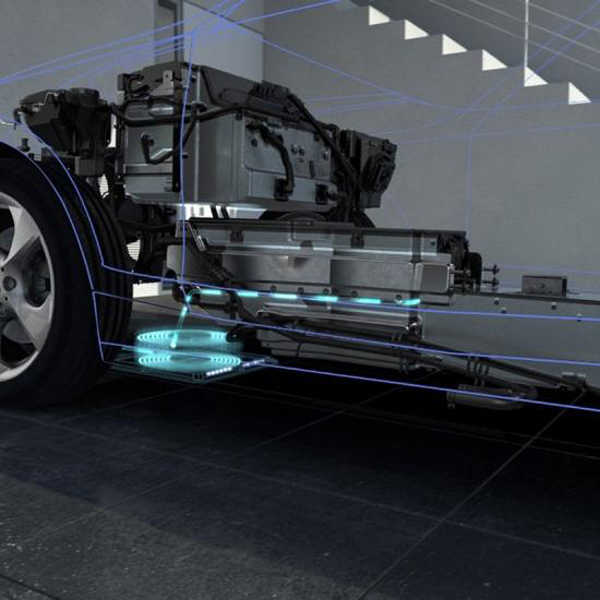

7 KW Modular non-contact charging system is based on magnetically coupled resonant radio energy transmission technology, which transfers energy from the transmitter of the system to the receiver of the system by electromagnetic field, and provides stable DC power supply for user equipment after filtering and rectifying.

The system has the functions of input voltage anomaly detection, output overcurrent, system overheating and so on.

Product Feature

• Single-phase AC Input Voltage Range: 187Vac～253Vac；

• Perfect Protection and Alarm Function:  Input over/undervoltage, output over/under voltage, output over current, over temperatureprotection, etc.；

• LED display, easy to operate man-machine interaction, candisplay voltage, current, charging status and fault information ；

• The best productivity is 92%

Product Specification
