Portable Level 2 EV Chargers with Mode 2 Charger
Portable Level 2 EV Chargers with Mode 2 Charger
• Easy Use
Plug&play, easy operation
Current adjust by sinple press on button
• High efficiency
Max 7.4kw charging power
• Portable and convenient
Charge your EV whenever and wherever
• Reliable & safe
TUV & CE approved top quality
Features
Easy Use
Plug&play, easy operation
Current adjust by sinple press on button
High efficiency
Max 7.4kw charging power
Portable and convenient
Charge your EV whenever and wherever
Reliable & safe
TUV & CE approved top quality
Advantages
IP67
TUV approved protection level for safety
Charging in extreme environment
Current adjustable
Max 7 levels charging current selection
Colour screen
Show real-time charging status
Solid design
Strong cable retention
Drop & Crush resistance
Enclosure strong enough to withstand the weigtht of a MPV
Safety & protection
AC30mA+DC6mA protection
Circuit board equipped with all necessary safety protection
Temperature monitoring
Above 85℃ it will cut off immediately and resume below 75℃
Appointment
Max 8 hours schedual delay start on charging time.

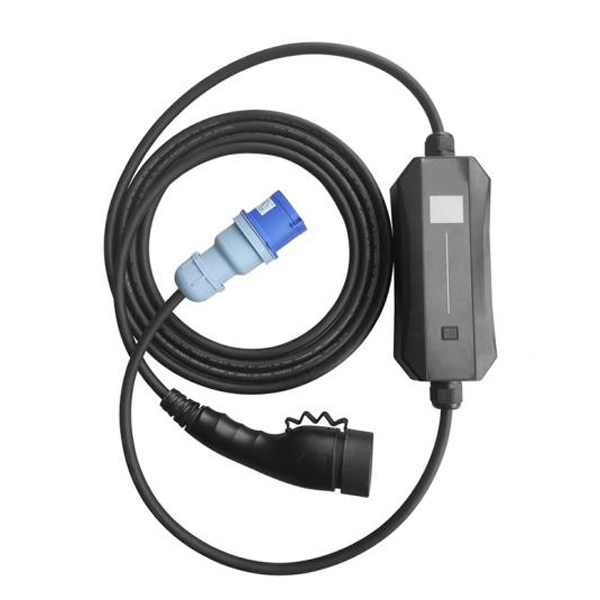

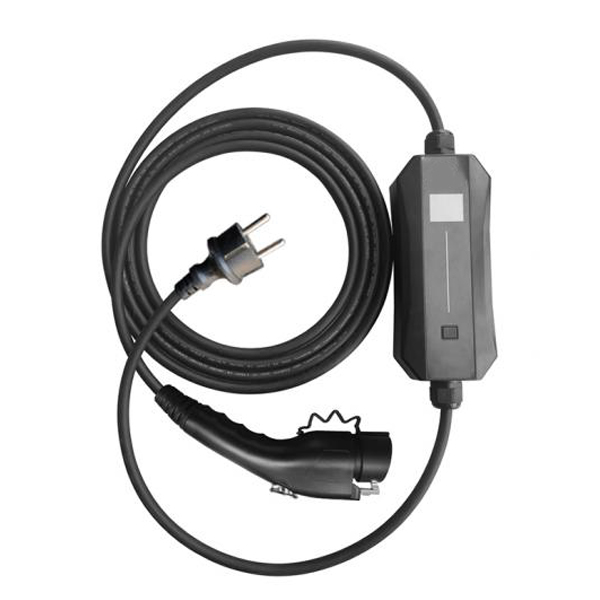

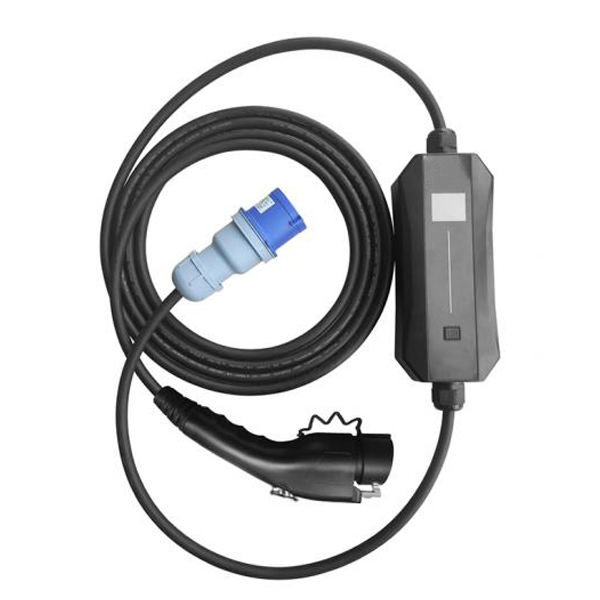

Different connector choices:
Type1&Type2
Product Feature 01&Product Feature 02
SCHUKO/ NZ/UK/NEMA/CEE
Product Feature 03-07
Parameter
Specification | Model | AE220003YY01 | |
Electrical Properties | Voltage | 230VAC±10% | 230VAC±10% |
Max Output Power | 3.6KW | 7KW | |
Cable Specification | 3*2.5mm²+2*0.5mm² | 3*6mm²+2*0.5mm² | |
Frequency | 50/60Hz | ||
Structure Design | Residual Current protection | 30mA AC+DC6mA | |
Display | 1.8”LCD | ||
LED Indicator | LED Light Bar | ||
Front Panel | PMMA | ||
Installation Method | Wall-mount/carry-on Optional | ||
Charging Outlet | Type1/2 +4.5M Charging Cable | ||
Housing Material | PC+GF10% | ||
Security Protection | Safety Standard | IEC/EN 62752:2016 | |
Multiple Protection | Over/Under voltage protection, Surge protection, Over temperature protection, Over current protection, Leakage protection, Short circuit protection, EFT protection | ||
Warranty | 1 year | ||
Environmental Performance | Working temperature | -30℃-60℃ | |
Storage temperature | -40℃-70℃ | ||
Working humidity | 5%-95%，No Condension | ||
Protection Level(control box) | IP67 | ||
Altitude | ≤2000m | ||
Application Site | Indoor/Outdoor | ||
Cooling Method | Natural cooling | ||
Extra Function | Temperature Detection Function | Yes(Check the temp. of PCB and Show it on the screen) | |
Schedule charging | Yes(1-8 hours) | ||
Packing Details | Product Size | 255*109*55mm | |
Product Weight(Net Weight) | ≤2.7KG | ≤3.3KG | |
Product Weight(Gross Weight) | ≤2.9KG | ≤3.6KG | |
