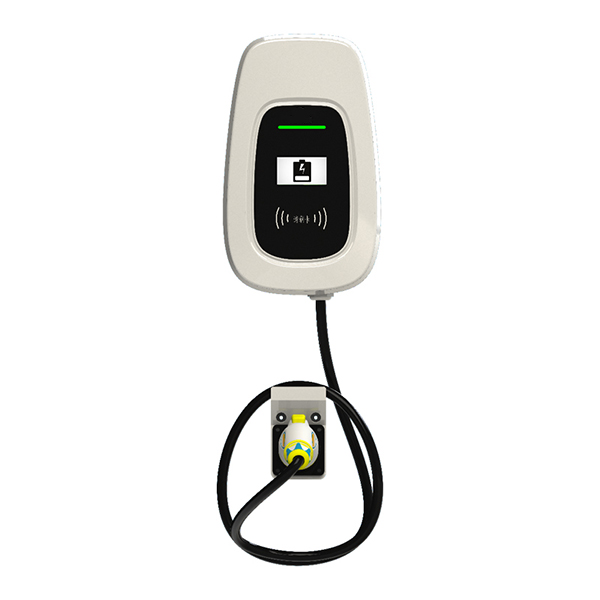

EV Commercial Charger 3 phase AC11KW for New Energy Vehicles
EV Commercial Charger 3 phase AC11KW for New Energy Vehicles
• Space-saving and easy-to-install design
• Smart functionality for optimized charging
• Remote software updates
• Broad range of connectivity options
• Built-in energy meter for load management
Product Feature
• Space-saving and easy-to-install design
• Smart functionality for optimized charging
• Remote software updates
• Broad range of connectivity options
• Built-in energy meter for load management
Key benefits
• Complying with IEC standards
• Single phase up to 7.4 kW / 32 A
• Three phase up to 43 kW / 64 A
• Protection IP54, IK10
• Connectors type 2, socket with or without shutter
• Overcurrent, overvoltage, undervoltage, ground fault and surge protections integrated
Advantage
Sky offer a full range of charging station for every application: at home, work or public areas. Each of our products have their distinct features making them optimally suited for every situation.
If you charge your company car at home or you have a charging station that is publicly accessible, you most likely want to be compensated for the charged electricity. With the smart chargers of Newyea, this can easily and automatically be arranged.
The smart chargers of Sky are equipped with a communication module, which allow them to connect to an online management platform. This means that you can manage your charging station at any point, from any location through your smart phone, tablet or PC.
The charging stations of Sky are developed and produced in-house with high quality components. Therefore you can always rely on Neweya for a fully charged battery of your electric car. If, for any reason, you cannot charge, you want to have your charging station serviced or you have any questions about the functionality of your station, Sky is ready to support you.
Parameter
Input Power | |||||||
Input Voltage（AC） | 1P+N+PE | 3P+N+PE | |||||
Input Frequency | 50Hz or 60Hz | ||||||
Wires, TNS / TNC Compatible | 3 Wires, L, N, PE | 5 Wires，L1，L2，L3，N，PE | |||||
Output | |||||||
Voltage | 230VAC±10% | 400VAC±10% | |||||
Max Current | 16A | 32A | 16A | 32A | 63A | ||
Nominal Power | 3.5KW | 7KW | 11KW | 22KW | 43KW | ||
RCD | Type A or Type B | ||||||
Environment | |||||||
Ambient Temperature | -35℃-60℃（-20℃ to --35℃，heating required） | ||||||
Storage Temperature | -40℃ to +70℃ | ||||||
Altitude | ＜2000Mtr. | ||||||
Humidity | ＜95%，non-condensing | ||||||
User Interface & Control | |||||||
Display | 4.3“，”7” Inch 2 options(with LED) | ||||||
Buttons and Switch | English | ||||||
Push Button | Display Wake up, Emergency Stop | ||||||
User Authentication | EMV Payment Schemes / RFID Based | ||||||
Visual Indication | Mains Available, Charging Status, System Error | ||||||
Protection | |||||||
Protection | Over Voltage, Under Voltage, Over Current, Short Circuit, Surge Protection, Over Temperature, Ground Fault, Residual Current | ||||||
Charging Protocol | OCPP 1.6 | ||||||
Communication | |||||||
Charger & Vehicle | PWM | ||||||
Charger & CMS | Protocol: OCPP 1.6 (Open Charge Point Protocol) Interface: Ethernet,3G/4G/Wifi | ||||||
Mechanical | |||||||
Ingress Protection (EN 60529) | IP67 | ||||||
Impact Protection | IK 10 | ||||||
Enclosure Protection | Vandal Proof Metal Enclosure | ||||||
Cooling | Air Cooled | ||||||
Wire Length | 3.5-5 m | ||||||
Dimension(W*H*D) | 400*280*117mm | ||||||
