EV Smart 44kW Charger with dual Type 2 plug for public charging station
EV Smart 44kW Charger with dual Type 2 plug for public charging station
Compliant with the industrial standards, the charger use MID certified meter to ensure accuracy and built-in RCD to secure safety. The charger also includes 6mA DC leakage detection, which eliminates the need for an expensive up-cost of RCD type B.
Multiple public chargers in one location can be integrated in the network with only one internet communication connection. Thanks to open protocol OCPP 1.6, the charger operation and status is monitored and controlled by existing backend or central management system.
Product Feature
Compliant with the industrial standards, the charger use MID certified meter to ensure accuracy and built-in RCD to secure safety. The charger also includes 6mA DC leakage detection, which eliminates the need for an expensive up-cost of RCD type B.
Multiple public chargers in one location can be integrated in the network with only one internet communication connection. Thanks to open protocol OCPP 1.6, the charger operation and status is monitored and controlled by existing backend or central management system.
Advantage
Newyea charging stations is the right fit for businesses, municipalities and property owners that want to offer EV charging to their employees, customers, residents and fleets.
Innovative advantages of the Newyea charging stations:
Flexible Pricing: Set charging fees by time, session, kWh or any combination thereof. You can set fees for different drivers or groups of drivers or for different times of the day.
Scalable Access Control: With the third party Connections, your employees, customers or residents can sign up to use your stations through the third party mobile app, eliminating the burden of managing long lists of drivers.
Branding and Customization: Promote your brand with an LCD screen and customizable signage.
Interactive System: Multi-language instructions customization
Parameter
Specification | Model | NYEC-44K（A）C011-400Y |
AC Nominal Input | Phases/Lines | 3 phase + neutral + PE |
Voltage | 400V±10% | |
Frequency | 50Hz | |
AC Nominal Output | Voltage | 400V±10% |
Current | 2*32A | |
Power | 2*22KW | |
Structure Design | Housing Material | Galvanized steel |
Left/Right Panel | Temper glass | |
Installation Method | Floor-stand | |

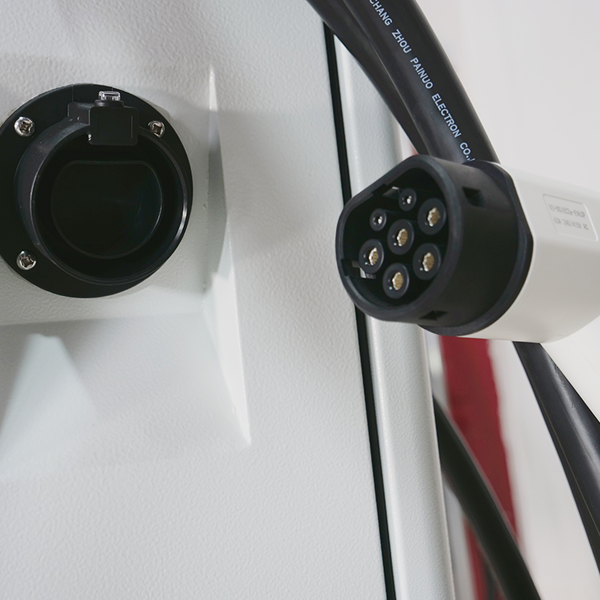

Charging Outlet | Two charging socket（Type 2） | |
Cable Length | No cable | |
LED Indicator | Green/yellow/red color for different status | |
LCD Screen | Display of charging data | |
Touch Buttons | 4 buttons for screen operation | |
Emergency Stop Button | Yes | |
RFID Function | Yes | |
RFID Card | 4 pcs Mifare card | |
Energy Meter | MID certified | |
RCD | Type A +6mA DC | |
Environmental Index | Operating Temperature | -30℃-+50℃ |
Working Humidity | 5%-95% without condensation | |
Working Altitude | ＜2000M | |
Protection Grade | IP54 | |
Application Site | Indoor/Outdoor | |
Cooling Method | Natural cooling | |
Security Protection | Multiple Protection | Over/Under voltage protection, Overload protection, Short circuit protection, Current leakage protection, Grounding protection, Surge protection, Over/Under temperature protection |
MTBF | 100,000hours | |
Safety Standard | IEC 61851-1-1:2017,IEC 62196-2:2016 | |
Warranty | 2 years | |
Package Information | Production Dimension | 290*230*1200MM |
Package Dimension | 480*430*1320MM | |
Net Weight | 32.5KG | |
Gross Weight | 43.5KG | |
External Packing | Wooden case | |
Network Gateway | Ethernet/3G/4G Communication | |
Optional Parts | Communication Protocol | OCPP 1.6(JSON) |
Type 2-Type 2 Cable | Three-phase, 4M Cable | |
Fixed Cable instead of Socket | Type 2 Charging gun with 4M cable |
